When it comes to machined components, the type of thread used is a critical design choice that directly impacts performance and reliability. The two common options are straight (or parallel) threads and tapered threads. While both types connect components, their design and sealing mechanisms are different.
Understanding these differences is essential for anyone involved in sourcing or specifying precision parts.
In this article, we'll break down the characteristics of straight and tapered threads, explain how each achieves a seal, and highlight why these distinctions matter for your projects.
To truly grasp the implications of straight versus tapered threads, it's essential to understand their basic geometry and how they are designed to perform.
Straight Threads (Parallel Threads):
Tapered Threads:

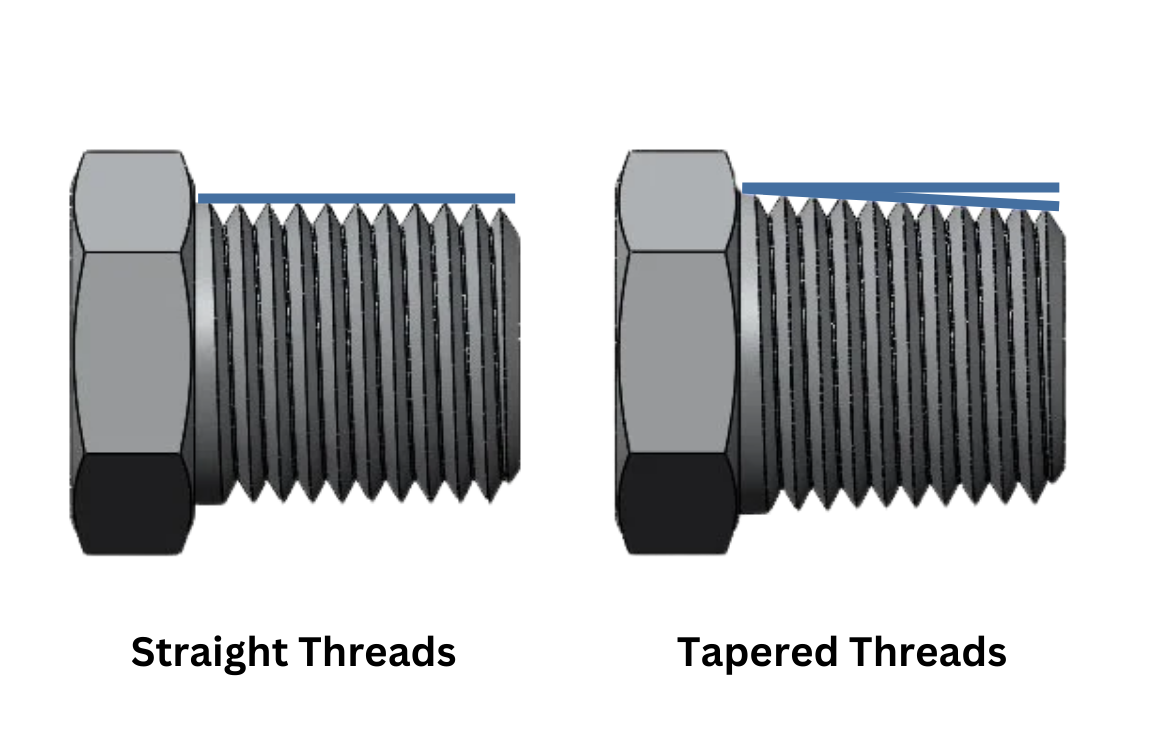

Straight threads, also known as parallel threads, maintain a consistent diameter throughout their length. This design relies on external elements for sealing when used in fluid or gas applications, making them distinct from their tapered counterparts.
In port applications, the sealing for a straight thread fitting typically occurs at the top of the thread. This is most commonly achieved by compressing an O-ring or a gasket between the face of the fitting and the mating surface. The threads provide a strong mechanical connection, holding the components together, while the separate sealing element prevents leakage.
Common standards for straight threads include UN/UNF (Unified National Coarse/Fine) in North America, often used for general fastening. Internationally, Metric Parallel (G series - BSPP) threads are widely adopted and also rely on an O-ring or gasket seal. Another popular choice, especially in hydraulic systems, is the SAE Straight Thread O-Ring Boss (ORB), where the O-ring provides a seal against high pressures.
The primary advantage of this design is highly reliable and repeatable sealing, especially when properly installed with an O-ring or seal. This reliability holds even after multiple disassemblies, making straight threads ideal for applications where components need to be frequently serviced or where a precise, repeatable seal is crucial. The separate sealing surface provides a more positive "stop" during tightening, which can help prevent over-tightening of the threads themselves.
It's important to consider that straight thread systems require an additional component like an O-ring or other sealing element, which can add to the bill of materials and assembly steps. The sealing surface on both the fitting and the port needs to be precisely machined for optimal O-ring compression and overall seal integrity.
Tapered threads are designed with a decreasing diameter along their length, creating a conical shape that allows them to wedge into a mating tapered hole. This unique geometry is fundamental to how they achieve a seal.
The sealing action of a tapered thread fitting occurs directly between the male and female threads as they are tightened. This metal-to-metal interference fit creates the primary seal. To enhance this sealing capability and minimize the risk of leaks, a thread sealant—such as PTFE tape or pipe dope—is almost always applied to the male threads before installation. This sealant fills any microscopic gaps and lubricates the threads for proper engagement, ensuring a strong connection.
The most common tapered thread standards in North America are NPT/NPTF (National Pipe Taper/National Pipe Taper Fuel), widely used in plumbing and industrial applications. While NPTF is designed for a dry seal without sealant, for critical applications, sealant is still often used for added security. Internationally, Metric Tapered (R series - BSPT) threads are also prevalent and rely on a similar wedging action.
A significant advantage of tapered threads is their "self-sealing" design. The geometry allows the threads to create a seal, simplifying the fitting design by eliminating the need for a separate O-ring. This can streamline assembly in certain applications where additional sealing components might be cumbersome. The wedging action also provides a very strong mechanical connection, often used in high-pressure environments.
However, there are important considerations for tapered threads. A thread sealant is typically necessary to achieve a reliable, leak-free connection, which adds an extra step and material to the assembly process. Additionally, over-tightening can damage the threads, as the seal relies on slight deformation of the metal. Repeated assembly and disassembly can degrade the seal over time, requiring careful handling and reapplication of sealant.
While both straight and tapered threads can be machined from a wide range of materials, the specific application often dictates the material choice. In high-pressure fluid systems where tapered threads are common, materials like stainless steel or brass are frequently used for their strength and corrosion resistance. For straight threads, which typically see more frequent assembly and disassembly, materials that offer good wear resistance are often preferred. The need for a good metal-to-metal seal in tapered threads means that the material's ability to slightly deform or "wedge" without galling is critical.
The core machining processes for both thread types involve cutting or rolling, but the specifics differ due to their geometric requirements.
The finish on a thread can play a significant role in its performance, particularly concerning sealing.
Understanding the distinctions between straight and tapered threads isn't just a technical detail; it impacts your project's performance, your supply chain efficiency, and ultimately, your bottom line. Whether you're a procurement specialist focused on optimizing costs or an engineer ensuring precise component reliability, the choice of thread type is critical.
Making the right thread choice can prevent issues like costly reworks, premature part failures, and assembly line slowdowns. Getting the specifications right the first time shortens lead times and consistent quality, helping you meet schedules and manage supplier costs effectively.
For projects with difficult specifications, such as complex geometries, tight tolerances, or specific materials, the correct thread type is vital for meeting strict quality standards and ensuring component reliability in final products. Sourcing these challenging parts demands a supplier with deep technical knowledge and a problem-solving approach.
At Spex, with over 75 years of experience and ISO:9001:2015 certification, we understand that the material of the part itself, and its interaction with the chosen thread type and any sealants, plays a significant role in the effectiveness and longevity of the connection. Our expertise ensures that these critical details are handled with precision, helping you source reliable, cost-effective, and high-quality parts.
We're here to make the process easier, providing precision machining you can count on.
