Swiss screw machining produces small-diameter precision parts with tighter tolerances and finer surface finishes than conventional CNC turning can achieve on the same geometries. The process uses a sliding headstock and guide bushing to support the bar stock directly at the cutting zone — which is what eliminates the deflection, chatter, and tolerance loss that make small-diameter turning difficult on standard lathes.
We run Swiss CNC lathes on bar stock up to 7/8" diameter, producing parts up to 4" in length. Live tooling handles cross-drilling, milling flats, and off-axis features in a single setup, so complex small parts come off the machine complete. Materials include stainless steel, brass, aluminum, copper, carbon steel, and specialty alloys including nickel alloys and titanium. Production volumes range from 1,000 to 200,000+ pieces.
This page covers how the process works, what parts are the best fit, and what to expect when quoting Swiss screw machining work. For an overview of all our production platforms and help choosing between Swiss, multi-spindle, and CNC, see our high-volume machining services page.
On a conventional CNC lathe, the bar stock is clamped in a chuck and the cutting tool moves along the part. The unsupported length of bar between the chuck and the tool determines how much the workpiece can flex under cutting forces. On small-diameter parts, that flex causes chatter, dimensional variation, and poor surface finish — and the problem gets worse as the part gets longer relative to its diameter.
Swiss machines solve this by reversing the motion. The bar stock slides axially through a guide bushing while the cutting tools remain in fixed positions around the bushing. The guide bushing supports the material within millimeters of where the tool contacts it, regardless of how far the bar extends. Deflection is effectively zero because the unsupported length is always short. This is why Swiss machining holds tighter tolerances on small-diameter and high length-to-diameter (L/D) ratio parts than any other turning process.
Guide bushing and sliding headstock. The bar feeds through the guide bushing from the headstock, advancing only as far as needed for each operation. The headstock slides on the Z axis to control feed, while the tools engage radially. The guide bushing acts as a steady rest directly at the cutting zone.
Multiple tool positions and live tooling. Swiss lathes carry multiple tools, configured around the bar, plus live (driven) tools that can mill, cross-drill, and tap. A subspindle on the back of the machine can pick up the part after cutoff and perform additional operations on the back end, eliminating the need for a second setup.
Single-setup completion. Turning, threading, grooving, cross-drilling, tapping, milling flats, knurling, and cutoff all happen in one uninterrupted cycle. The part drops off the machine finished or near-finished. This reduces handling, eliminates re-fixturing tolerance stack-up, and reduces per-part costs on complex geometries.
Swiss machining excels at small, precise components requiring tight tolerances and superior surface finishes. The process is ideal for long, slender parts where diameter-to-length ratios make conventional turning difficult. Complex small parts combining multiple features like threads, grooves, and cross-holes are completed efficiently in single setups.
Chemical Processing
These systems require small precision components for sampling and chemical delivery systems. Swiss machining delivers the corrosion resistance and surface finishes needed for aggressive environments.
HVAC & Heat Exchange
HVAC applications rely on small precision components for temperature control and monitoring systems. Tight tolerances and surface finishes maintain proper operation in temperature management devices.
Measurement & Instrumentation
This industry requires small, precise components for sensors and control devices. Swiss machining's ability to hold tight tolerances on small diameters makes it ideal for sensing and monitoring equipment.

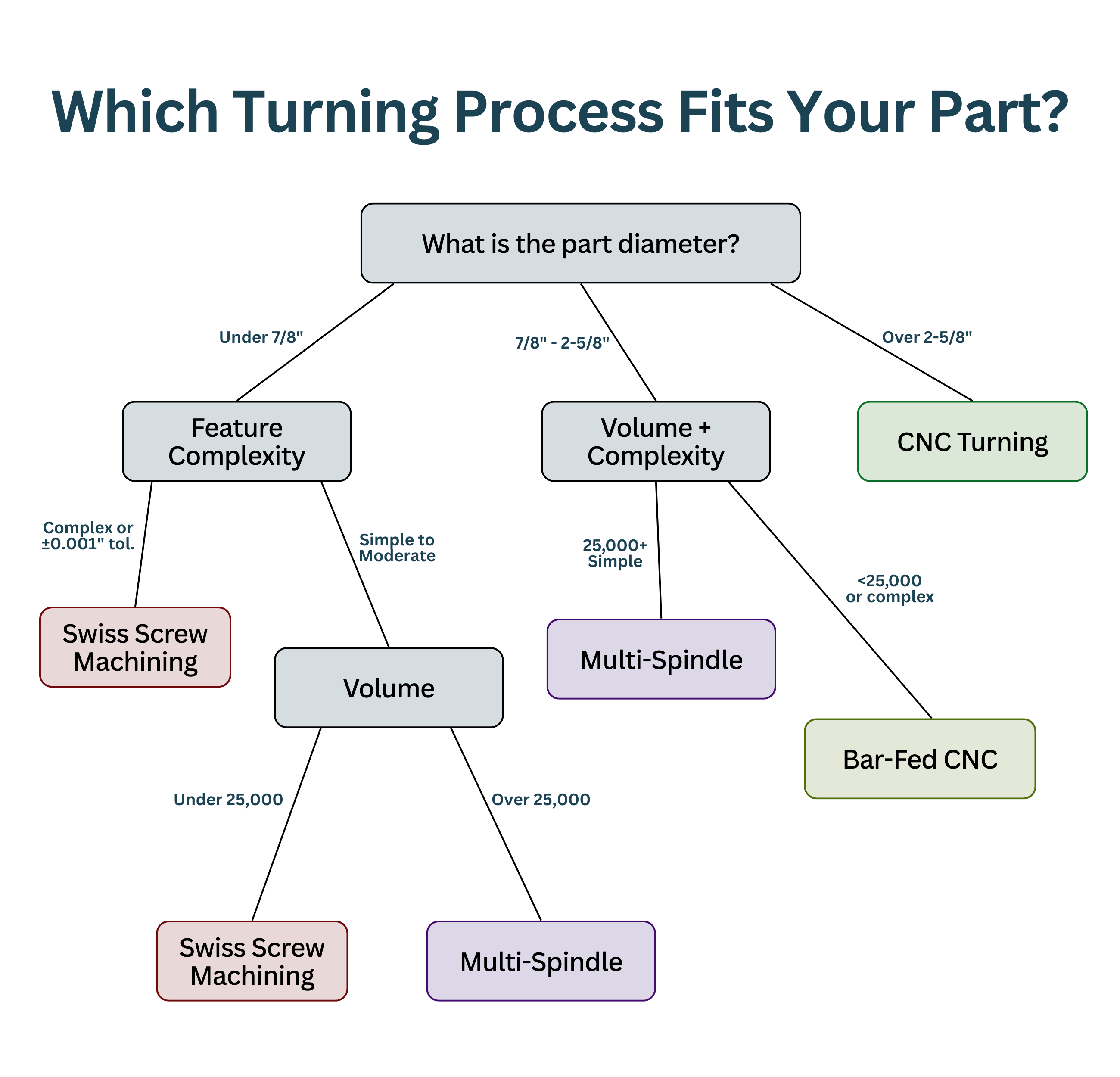

Swiss screw machining is the right process when the part fits these criteria:
Small diameter — up to 7/8". This is the bar stock capacity on our Swiss lathes. Parts below 1/2" diameter benefit the most from the guide bushing support, where conventional turning struggles to hold tolerance without tailstock support. Parts between 1/2" and 7/8" also run well on Swiss, particularly those with high L/D ratios or complex features.
High length-to-diameter ratio. A part that is 0.25" in diameter and 2.5" long (L/D = 10:1) would deflect badly on a conventional lathe. On a Swiss machine, the guide bushing supports it regardless of length, maintaining tolerance and finish over the full part length. Swiss is the standard process for long, slender shafts, pins, and probe bodies.
Complex features in a single setup. Parts combining multiple turned diameters with threads, cross-holes, milled flats, grooves, and knurling run efficiently on Swiss because all operations happen in one cycle. Moving that same part through multiple setups on a conventional lathe adds cost, time, and tolerance risk.
Tight tolerances and fine surface finishes. The rigidity of the guide bushing system allows Swiss machines to hold ±0.001" or better on turned diameters and achieve surface finishes under Ra 16 µin without secondary finishing. Parts that need ±0.0005" on specific features are achievable with process optimization.
Production volumes from 1,000 to 200,000+ pieces. Swiss setup involves programming, tool configuration, and first article qualification — which is more involved than a simple CNC turning setup. That investment amortizes starting around 1,000 pieces. Above 5,000 pieces, Swiss becomes increasingly cost-competitive. For simple turned parts above 25,000+ pieces in diameters under 7/8", multi-spindle may deliver lower per-part cost depending on feature complexity.
If your components fit these descriptions – particularly small, complex, or long and slender parts required in volume – Swiss screw machining is likely the most capable and efficient manufacturing solution. Partnering with an experienced provider like Spex ensures you leverage this technology effectively for reliable, precision parts delivered on time.
.png)
Swiss lathes can process any machinable metal, but some alloys run more efficiently than others at Swiss speeds and with Swiss tooling. Free-machining grades produce the cleanest chips and longest tool life.
303 Stainless Steel — The standard stainless grade for Swiss production. Sulfur additions break chips cleanly through the guide bushing. Instrument fittings, sensor housings, valve trim, and medical components are typical 303 Swiss work. 304 and 316 stainless run on Swiss as well — cycle times are longer due to work hardening, but the process handles them with adjusted parameters.
C360 Brass — Machines faster than any other alloy on Swiss equipment. Connector bodies, terminal pins, fittings, and threaded hardware in C360 achieve excellent surface finishes at high cutting speeds. Short chips evacuate cleanly through the guide bushing.
2011 Aluminum — The free-machining aluminum grade designed for screw machine and Swiss production. Electronic hardware, instrument components, and precision fittings at volume. 6061 also runs on Swiss for parts that need corrosion resistance or anodizing.
C14500 Tellurium Copper — Retains 93% of pure copper's electrical conductivity with dramatically better machinability. Miniature electrical contacts, connector pins, and probe tips. Pure copper (C11000) runs on Swiss but requires more careful chip management.
12L14 Carbon Steel — Free-machining steel for pins, spacers, dowels, and general-purpose hardware. The fastest-cutting ferrous option. 1018 and 4140 also run on Swiss for applications requiring higher strength or heat treatment.
Specialty alloys — We also machine nickel alloys (Monel, Inconel, Hastelloy) and titanium on Swiss lathes for applications in chemical processing and precision measurment equipment. These alloys require slower speeds, specialized tooling, and more aggressive coolant strategies, but Swiss's rigid guide bushing support is actually an advantage on these difficult-to-machine materials — it controls deflection that would be unmanageable on a conventional lathe.
Swiss-turned parts frequently require finishing operations after machining. We coordinate these through qualified secondary process vendors, delivering finished parts with full documentation.
Heat treating — Case hardening, through hardening, and age hardening for parts requiring specific hardness or strength after machining. Steel and stainless steel parts are commonly heat treated; beryllium copper parts are age hardened.
Plating and coating — Nickel, zinc, tin, chrome, and other platings for corrosion protection, conductivity, or appearance. Copper parts for electrical applications are frequently tin or silver plated.
Passivation — Citric or nitric acid passivation for stainless steel parts to restore the full corrosion-resistant oxide layer after machining.
Anodizing — Type II and Type III hardcoat anodizing for aluminum parts. We coordinate type, thickness, and color requirements.
Grinding and lapping — For parts requiring surface finishes or dimensional tolerances beyond what Swiss machining delivers as-machined.
Swiss machining's tight tolerances require matched inspection capability. Our ISO 9001:2015 quality system defines the measurement methods, inspection frequency, and documentation for every Swiss production job. In-process checks at defined intervals verify that critical dimensions — turned diameters, thread pitch diameter, cross-hole position, overall length — remain within tolerance as tools wear across the run.
Every order ships with full documentation: material certifications with heat and lot traceability, dimensional inspection reports on critical features, and First Article Inspection Reports (FAIRs) when specified. For longer runs, SPC data on key dimensions is available to demonstrate process stability across the entire production quantity.
We'd love to hear from you!
Scalable production
Short lead times
Fair prices
ISO-9001 certified
Secondary processes
Range of materials
On-time delivery
75+ years in business
Advanced CNC machining
Rapid prototyping
Swiss screw machining (also called Swiss turning or Swiss-type CNC turning) is a precision turning process that uses a guide bushing and sliding headstock to support bar stock at the cutting zone. The bar feeds through the guide bushing while tools engage radially around it. This support eliminates deflection on small-diameter and long, slender parts, allowing tighter tolerances and better surface finishes than conventional CNC turning. Swiss machines also carry live tooling for cross-drilling, milling, and tapping — completing complex parts in a single setup.
Standard Swiss production tolerances are ±0.001" to ±0.002" on turned diameters. Tighter tolerances to ±0.0005" are achievable on specific features with process optimization, appropriate tooling, and in-process gauging. Thread tolerances follow standard class specifications. The guide bushing's rigidity makes these tolerances repeatable across production runs, not just achievable on a first article.
The key difference is the guide bushing. On a conventional CNC lathe, the bar extends from the chuck with no support near the cutting zone — small diameters flex under cutting force, causing tolerance and finish problems. On a Swiss lathe, the bar slides through a guide bushing that supports it within millimeters of the tool. This eliminates deflection regardless of the part's length-to-diameter ratio. Swiss machines also combine more operations (turning, milling, drilling, tapping, backworking) in a single cycle than most conventional CNC lathes.
Our Swiss lathes handle bar stock up to 7/8" (22mm) diameter, producing parts up to 4" in length. The process is most advantageous on parts below 1/2" diameter and with length-to-diameter ratios above 3:1, where the guide bushing's deflection control provides the largest improvement over conventional methods. Parts above 7/8" diameter move to CNC turning; parts above 2-5/8" diameter move to our bar-fed CNC turning centers.
Any machinable metal runs on Swiss: stainless steel (303, 304, 316), brass (C360), aluminum (2011, 6061), copper (C14500, C11000), carbon and alloy steel (12L14, 1018, 4140), nickel alloys (Monel, Inconel, Hastelloy), and titanium. Free-machining grades (303, C360, 2011, 12L14) run most efficiently. Specialty alloys like Inconel and titanium require slower speeds and specialized tooling but benefit from the guide bushing's rigidity when machining difficult materials.
We coordinate heat treating, plating (nickel, zinc, tin, chrome, silver), passivation, anodizing, and grinding through qualified vendors. Parts ship finished with full documentation. Secondary operations are quoted as part of the complete job — specify them on your RFQ so we can include the cost and lead time impact.
We quote Swiss work starting at 1,000 pieces. Below that quantity, the programming, tooling, and first article investment doesn't amortize well. The sweet spot for Swiss economics starts around 5,000 pieces, where the per-part cost advantage of single-setup completion becomes most significant. For simple turned parts above 25,000 pieces, multi-spindle may deliver lower per-part cost depending on feature complexity.
Part drawings or CAD models with material grade specified, required tolerances, order quantity, and estimated annual usage (EAU). Include any secondary operations — heat treating, plating, passivation, anodizing. If the part has critical dimensions or specific surface finish requirements (Ra values), call those out on the drawing. Note any material flexibility (e.g., "303 preferred, 304 acceptable") so we can quote the most efficient option.
